Introduction

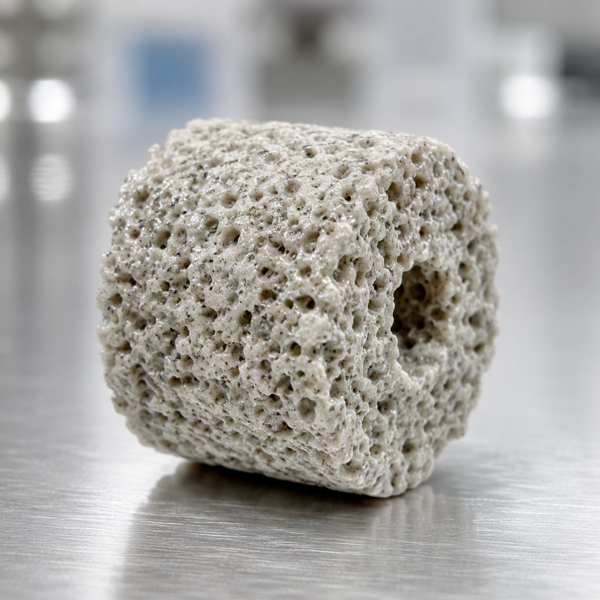

In the field of heterogeneous catalysis, the performance of a catalyst depends not only on its active components but also critically on the structural integrity and mechanical strength of its support. Porous ceramic catalyst carriers must withstand high temperatures, thermal shock, and continuous chemical exposure while maintaining a stable porous structure for reactant diffusion.
Aluminum dihydrogen phosphate (ADP, CAS 13530-50-2, molecular formula AlH₆O₁₂P₃) has emerged as a game-changing inorganic binder for precisely this application. Unlike organic binders that decompose and leave voids, ADP transforms during heat treatment into a robust ceramic bonding phase that locks ceramic particles together.
This article explores how ADP functions as a high-performance binder for porous ceramic catalyst supports, drawing on recent research findings including 3D-printed ceramic catalysts, low-shrinkage metakaolin ceramics, and phosphate-bonded porous ceramics.
Why ADP Outperforms Conventional Binders
Traditional catalyst support fabrication relies on organic binders like polyvinyl alcohol (PVA) or methylcellulose. While these provide adequate green strength, they present significant drawbacks:
Decomposition at high temperatures: Organic binders burn off during sintering, offering no contribution to final mechanical strength
High shrinkage: Substantial volume loss occurs as organics are removed
Limited thermal stability: Cannot withstand extreme operating conditions
ADP solves these problems through its unique dual functionality:
Low-temperature bonding: At 60-120°C, ADP forms a gel that provides green strength for handling
High-temperature transformation: Upon heating to 500-900°C, ADP converts to aluminum metaphosphate (Al(PO₃)₃) and then to aluminum phosphate (AlPO₄)—creating a continuous ceramic bonding network
As one study describes, "porous alumina ceramics are formed by AlPO₄ bonding among alumina particles at low temperature". This phosphate bonding mechanism enables ceramic consolidation without the high sintering temperatures typically required.
The Bonding Mechanism: From ADP to Ceramic Phase
Understanding ADP's thermal transformation is key to leveraging its full potential. Research has established the following transformation sequence:
| Temperature Range | Phase Transformation | Implication |
|---|---|---|
| 60-200°C | Dehydration and gel formation | Green strength development |
| 380-561°C | Transition to B-type Al(PO₃)₃ (six-membered ring metaphosphate) | Initial ceramic bonding |
| 561-900°C | B-type → A-type Al(PO₃)₃ (four-membered ring) | Progressive strengthening |
| 900-950°C | Peak mechanical strength achieved | Optimal processing window |
| >950°C | A-type decomposes to AlPO₄ + P₂O₅(g) | Porosity increases, strength decreases |
The bonding mechanism is clear: the aluminum metaphosphate formed from ADP during heat treatment bonds the ceramic particles together to form porous structures. This phosphate bridge creates a continuous inorganic network that provides exceptional mechanical integrity.
Key Performance Advantages for Catalyst Supports
1. Superior Mechanical Strength
ADP-bonded ceramics demonstrate impressive mechanical properties. In comparative studies:
ADP-bonded ceramic catalysts reached compressive stresses of 93.7 MPa—over 8× stronger than organic-bound equivalents at 11.3 MPa
Metakaolin ceramics using ADP binder achieved flexural strength of 9.02 MPa with <2% linear shrinkage at only 750°C sintering temperature
Porous SiC ceramics bonded with ADP reached maximum flexural strength at 900°C
This strength enables catalyst supports to withstand high-velocity flow conditions in fixed-bed reactors without crumbling.
2. Tailorable Porosity
Unlike dense ceramics that sacrifice surface area for strength, ADP-bonded structures can maintain high porosity:
Porosity can be adjusted between 75-91% by controlling ADP content and sintering temperature
Higher ADP content increases strength but reduces porosity—allowing optimization for specific catalytic needs
The ability to engineer both mechanical properties and pore architecture makes ADP invaluable for catalyst support design.
3. Low-Temperature Processing
Traditional ceramic sintering often requires temperatures exceeding 1200-1600°C. ADP enables consolidation at temperatures as low as 500-950°C. This offers:
Energy savings of 30-50% compared to conventional processing
Compatibility with thermally sensitive additives (e.g., cobalt active species)
Reduced manufacturing costs enabling scalable production
4. Active Site Compatibility
Recent advances in 3D-printed catalysts demonstrate ADP's compatibility with catalytically active components. A 2025 study successfully fabricated cobalt-loaded silica ceramic catalysts using ADP as inorganic binder via direct ink writing (DIW).
Key findings include:
Uniform Co distribution without aggregation at loadings of 1-3 wt%
100% catalytic conversion of 4-nitrophenol achieved
95.4% conversion maintained after 8 cycles—excellent stability
Tunable catalytic activity with Co content and porosity
This "one-pot" approach eliminates multiple processing steps, directly mixing active metal precursors with ADP and ceramic powder before printing and sintering. The result is a homogeneous distribution of catalytic sites throughout the support structure.
Practical Applications and Formulations
Case Study 1: Porous Alumina Catalyst Supports
Using calcined α-Al₂O₃ powder as aggregate and ADP as binder, porous alumina ceramics can be prepared by compression molding:
ADP content: Typically 10-40 wt% of solids
Processing: Drying at 120°C → sintering at 500-950°C
Resulting properties: Porosity 50-85%, flexural strength 5-20 MPa (depending on ADP content and temperature)
The AlPO₄ bonding phase accelerates liquid-phase sintering among alumina particles, enabling dense bonding at temperatures where pure alumina would remain porous.
Case Study 2: Mesoporous Alumina via Powder Sintering
A patented method using ADP as binder produces mesoporous alumina ceramics with controlled surface area:
Raw material: Nano-boehmite (90-110 nm, 340 m²/g specific surface area)
ADP concentration: 4.5-31.5 wt% in aqueous solution
Sintering: 500-800°C
Results: Mesoporous structure with γ-Al₂O₃ as the active phase—ideal for adsorption and catalysis
This powder sintering approach is simpler and more scalable than sol-gel methods, with production cycles shortened by half.
Case Study 3: 3D-Printed Ceramic Catalysts
Additive manufacturing with ADP binder enables complex geometries optimized for flow distribution:
Printing method: Direct ink writing (DIW)
Binder system: ADP + HPMC (organic co-binder for printability)
Sintering: 1200°C under H₂-Ar atmosphere
Application: Structured catalysts with tunable grid sizes
Design Considerations for Catalyst Support Optimization
When formulating ADP-bonded ceramic supports, consider these parameters:
| Parameter | Effect | Typical Range |
|---|---|---|
| ADP content | Higher = stronger, lower porosity | 10-40 wt% |
| Sintering temperature | Higher = stronger up to 900°C, then strength decreases | 500-950°C |
| Particle size | Smaller = higher surface area, higher shrinkage | 0.5-50 μm |
| Active metal loading | Limited by ADP compatibility | 1-5 wt% |
| Porosity target | Trade-off with strength | 50-90% |
Key insight: The optimal processing window is typically 800-900°C where ADP has fully converted to metaphosphate phases but decomposition to AlPO₄ + P₂O₅ is minimal. Operating at this temperature maximizes mechanical strength while maintaining porosity.
Conclusion: Why ADP is the Future for Ceramic Catalyst Supports
Aluminum dihydrogen phosphate offers a unique combination of properties that address the central challenges in porous ceramic catalyst support fabrication:
High green strength enables complex shape forming
Low-temperature ceramic bonding saves energy and preserves active species
Tunable porosity allows application-specific optimization
Exceptional final strength ensures long operational lifetime
Compatibility with active metals enables one-pot manufacturing
From conventional pressed pellets to advanced 3D-printed monolithic structures, ADP is enabling the next generation of high-performance ceramic catalyst supports. Research continues to expand the applications—from 4-nitrophenol reduction to potential uses in automotive catalysis, VOC oxidation, and petrochemical processing.
